Collimator is made up by capillary pigtail and G- Lens which aligned accurately. By the self-focus of G-Lens, collimator can realizable to output a parallel beam or input the parallel Beam into the fiber. It is widely used in optical Module or optical researching and lab field.

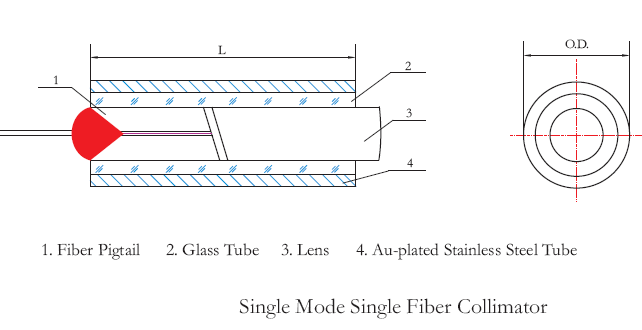

1、Single mode single fiber collimator
Item
Specifications
Working Distance(mm)
70~110mm
Operating Wavelength (nm)
1310/1550 ,1260~1620 or Customized
Insertion Loss (dB)
0.25 DB
Fiber Type
250um Corning SMF-28e
Fiber Length (Min.)
1.0-1.5 m
Operating Temperature (° C)
0-70℃

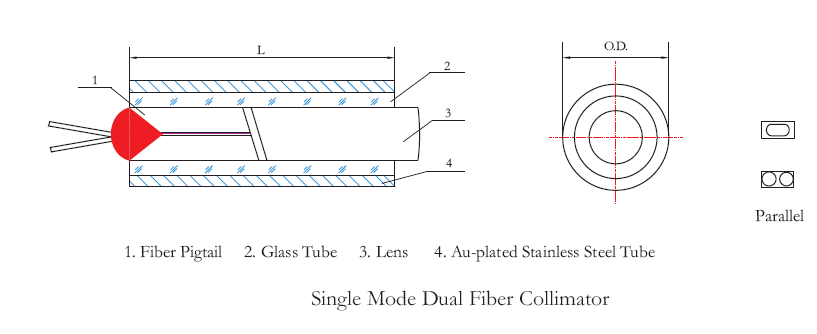

2、Single
mode dual fiber collimator
Item
Specifications
Working Distance(mm)
20-200 mm
Operating Wavelength (nm)
1310+/-40 nm or 1550+/-40 nm
Insertion Loss (dB)
0.25 DB
Fiber Type
250um Corning SMF-28e
Fiber Length (Min.)
1.5 m
Operating Temperature (° C)
0-70℃
Storage Temperature (° C)
-40~85℃

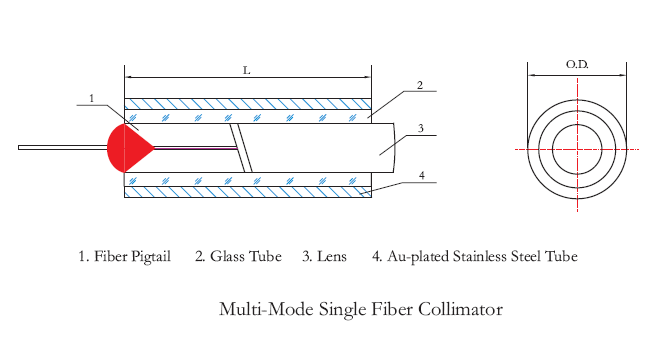

3、Multi-mode
single fiber collimator
Item
Specifications
Working Distance(mm)
≤30mm
Operating Wavelength (nm)
1310+/-40nm or1550+/-40nm
Insertion Loss (dB)
0.3DB
Fiber Type
50/125/250um or62.5/125/250um fiber
Fiber Length (Min.)
1.0m
Operating Temperature (° C)
0-70℃
Storage Temperature (° C)
-40~85℃

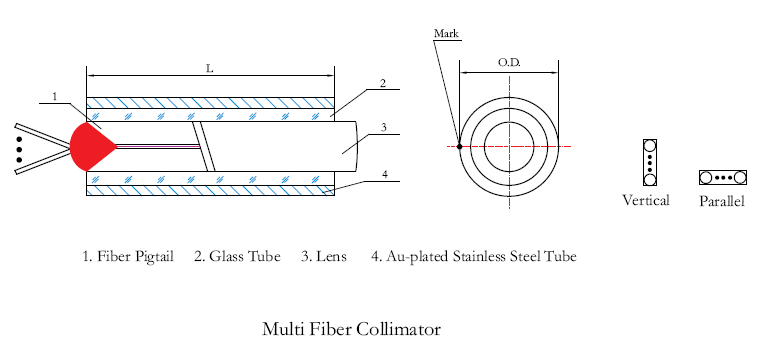

4、Multi
fiber collimator
Item
Specifications
Operating Wavelength (nm)
1310nm or 1550nm
Return loss (In/Out) (dB)
55DB
Insertion Loss (dB)
0.4DB
Fiber Type
Corning SMF-28
Fiber Length (Min.)
1.5m
Operating Temperature (° C)
0-70℃
Storage Temperature (° C)
-40~85℃
