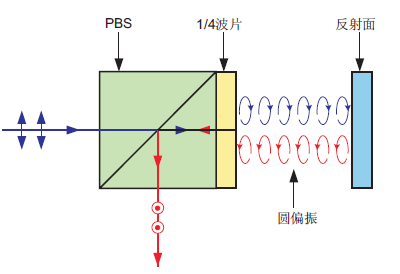

Optical isolator core is a combination of a polarization beam splitter cube (PBS) and a quarter wave-plate made of crystal quartz. Incident light is linearly polarized by PBS and converted to circular polarization by the quarter wave-plate. If any portion of the emerging beam is reflected back into the isolator, the quarter wave-plate will convert the reflected beam into a linearly polarized beam which is perpendicular to the input beam. This beam is then blocked by PBS and it will not return to the input side of the system.
Item
Specifications
Operating Wavelength (nm)
1310nm or 1550nm
Isolation
≥20DB
Insertion Loss (dB)
0.2DB
Dimension
About 0.6×0.7mm
Clear Aperture
0.5mm
Operating Temperature (° C)
-40~85℃
Storage Temperature (° C)
-40~85℃
