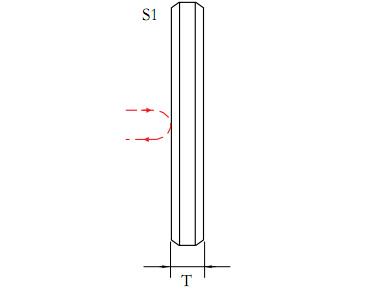

Dielectric HR Mirrors have the advantage of high reflectance and superior surface quality and accuracy. They offer near total reflection, minimizing losses in nearly all optical systems. These coatings are very durable, easily cleaned, resistant to laser damage and reflectance can be more than 99%. The wavelength (range) of reflectance depends on incident angles(0 degree or 45 degree).
Item
Specifications
Material
Fused Silica; N-BK7 or others
Dimension X×Y(φ)
1×1mm~25.4×25.4mm；φ3~φ25.4mm
Dimension tolerance
±0.05mm
Parallelism
＜10 seconds
Clear Aperture
85%
Surface Quality
MIL40-20
Flatness(per 10mm)
λ/10@632.8nm
Coating
Specified by customer(Single wavelength HR＞99.8% per surface)
