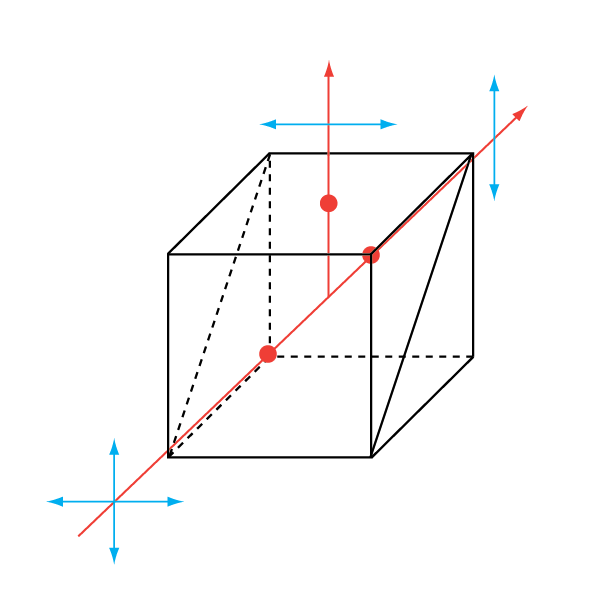

Polarizing beamsplitters split monochromatic beam entering at zero degree into two orthogonal, linearly, polarized beam. S-polarized light is reflected at a 90 degree angle while P-polarized light is transmitted. Each beamsplitter consists of a pair of precision high tolerance right angle prisms cemented together with a dielectric coating on the hypotenuse of one of prims.
Item
Specifications
Material
N-BK7（H-K9L)、Fused Silica and etc.
Dimension X×Y
0.5×0.5×0.5mm~50×50×50mm
Dimension tolerance
±0.05mm
Parallelism
＜10 seconds
Clear Aperture
85%
Surface Quality
MIL40-20
Flatness(per 10mm)
λ/10@632.8nm
Tp and Rs
Tp and Rs＞95%；Rp and Ts＜5%
ER（Extinction Ratio）
Tp/Ts＞1000：1(＞30db)；
Rs:Rp＞500：1(＞26db)
Bevel(face width×45°)
0.2~0.4mm or specified by customer
Work wavelength（nm）
532；633,850,1310,1550…
